Portable Natural Gas Syngas Analyzer Gasboard 3110P
Produk: Portable Natural Gas Syngas Analyzer
Merek: RY (Cubic-Ruiyi Instrument)
Tipe: Gasboard 3110P
Negara: Cina
Syngas (from synthesis gas) adalah nama yang diberikan untuk campuran gas yang mengandung berbagai jumlah karbon monoksida (CO) dan hidrogen (H2).
Metode produksi syngas termasuk reformasi uap gas alam atau hidrokarbon cair untuk menghasilkan hidrogen, proses gasifikasi batubara, biomassa atau gasifikasi Plasma (menghasilkan syngas kaya termasuk H2 dan CO).
Gasboard-3110P adalah penganalisa tipe portabel yang dapat digunakan untuk pengukuran online untuk komposisi gas alam dan nilai pemanasan secara real time. Sensor CH4 yang dikembangkan khusus dapat memberikan pembacaan CH4 yang akurat tanpa sensitivitas silang terhadap konten hidrokarbon lainnya. Sensor CnHm unik yang dikalibrasi dengan C3H8 dapat mendeteksi hidrokarbon selain CH4 dan menunjukkan nilai bobot total C2 + hidrokarbon dalam gas alam.
Konfigurasi standar: CH4 + CnHm + CO2 + Nilai Kalor + Indeks Wobbe (opsional).
Portable Gas3110 Syngas Analyzer spesification:
| Measurement | CH4 , CnHm + BTU index (gas calorific value) |
| Calculation | High Heating Value or Low Heating Value in MJ/m3 or kcal/m3 |
| Technology | CH4 , CnHm : proprietary dual beam NDIR detectors |
| Ranges | CH4 : 0 – 100%, CnHm : 0 – 10% Other ranges customizable on request |
| Resolution | 0,01% |
| Accuracy | ≤ ± 1% FS |
| Repeatability | ≤ 1% |
| Zero | Auto-zeroing function via keyboard interface |
| Gas conditions at analyzer inlet | Flow: 0.7 ~ 1.2 L/min, internal gas sampling pump, external flow meter with needle valve Pressure: 20 ~ 100 mbar Quality: No dust, moisture, tar (external safety filter and optional gas washing unit) |
| Operating conditions | Tamb : 0 – 50°C / Pamb : 86 – 108 kPa / RH : 0 – 95% non condensing |
| Response time (T90) | ≤ 15 sec |
| Warm-up time | 800 seconds (auto-zeroing cycle during the last 120 seconds) |
| Communication interface | RS232 ( real time and memory data download software included) |
| Power supply | External 220 VAC – 50Hz Internal with battery and charger; Autonomy of > 4h with pump in operation |
| Data logging | Up to 1500 sets of data; Logging rate adjustable from 3 to 99 sec Possibility to identify 10 different sites and up to 100 measuring points |
| Display | LCD 320 x 240 display with back-lit function |
| Casing | New design moudled casing and shoulder trap (delivered with protective carrying bag) |
| Casing | Robust casing in aluminium with cover and shoulder trap |
| Dimensions and weight | Gas analyzer : 380 × 140 × 255 mm / ± 5 kg (7 kg max with packaging) Portable gas washing unit : 400 x 120 x 380 mm / ± 3 kg (5 kg max with packaging) |

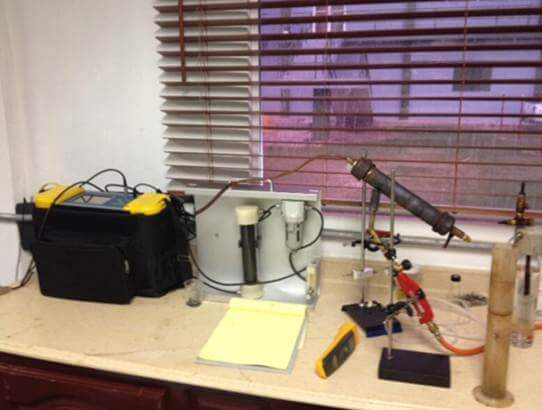

- The Portable Syngas Analyzer is able to monitor heat treat furnace atmospheres, blast furnace top gas, and some process gasses. They are right for coke ovens, steel manufacturing facilities, synthetic gas production, incinerators and coal plants, coal plants, gasification, and much more

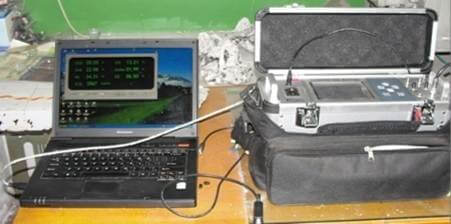

- Connect RS232 cable with PC and analyzer, install real time datalogging software, you can read real time data and storage data on the PC
- Data logging software
- Syngas analyzer data
Harga: (hubungi kami)
