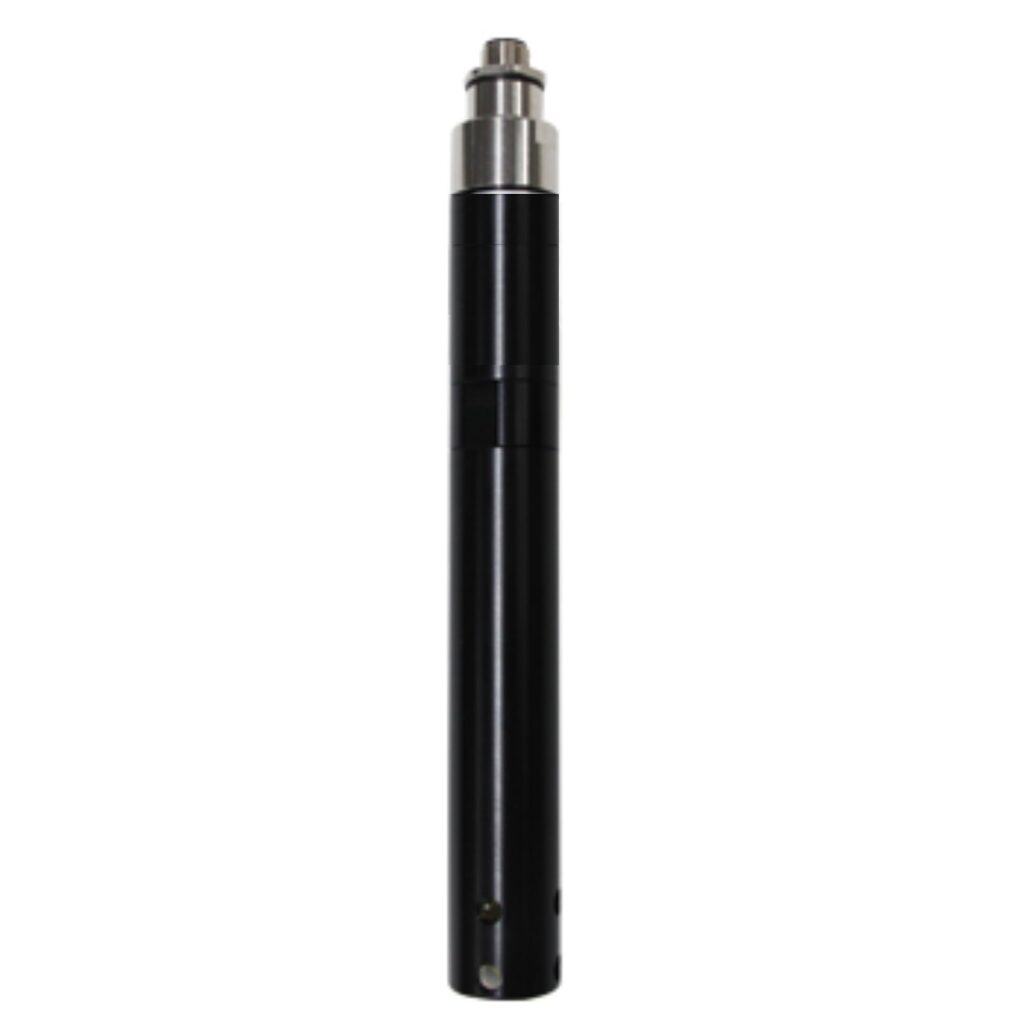

ORP Analyzer Sensor
ORP Analyzer terhubung langsung melalui antarmuka komunikasi RS485, menyediakan data proses yang sederhana, andal, hemat biaya dengan kemampuan pemantauan, kalibrasi, konfigurasi, dan diagnostik jarak jauh.
[wptab name=’Fitur’]
- High reliability and drift free
- Data monitoring and software configuration calibration
- Water submersible enclosure and solution without cabinet
- Ideal for outdoor applications and 0.05 w ultra low power consumption
- Temperature compensation
- Surge and protection for power
- Digital communication, minimize cabling, and engineering cost
- Eliminate i/o module cost, standard modbus rtu protocol, direct connected with plc, and hmi
- On-line realtime measurement 1 second
[/wptab]
[wptab name=’Spesifikasi’]
| Measurement range | -1,000 ~ 1,000 mV |
| Accuracy | ±5 mV |
| Resolution | 0.1 mV |
| Repeatability | ±0.5 mV |
| Operation pressure | Max. 10 Kgf/cm2 |
| Operating temperature | 0 ~ 85 °C |
| Process flow rate | 0.1 l/min |
| Response time | 1 sec |
| Protection | IP68 |
| Process Connection | M26x1.5 |
| Sensor Material | Glass |
| Housing Material | POM |
| Dimension | Φ 26 Χ 221 mm |
| Weight | analyzer: approx. 150 g (POM); 500 g (SS316L); 400 g (Titanium) cable: 80 g/m |
[/wptab]
[end_wptabset]
