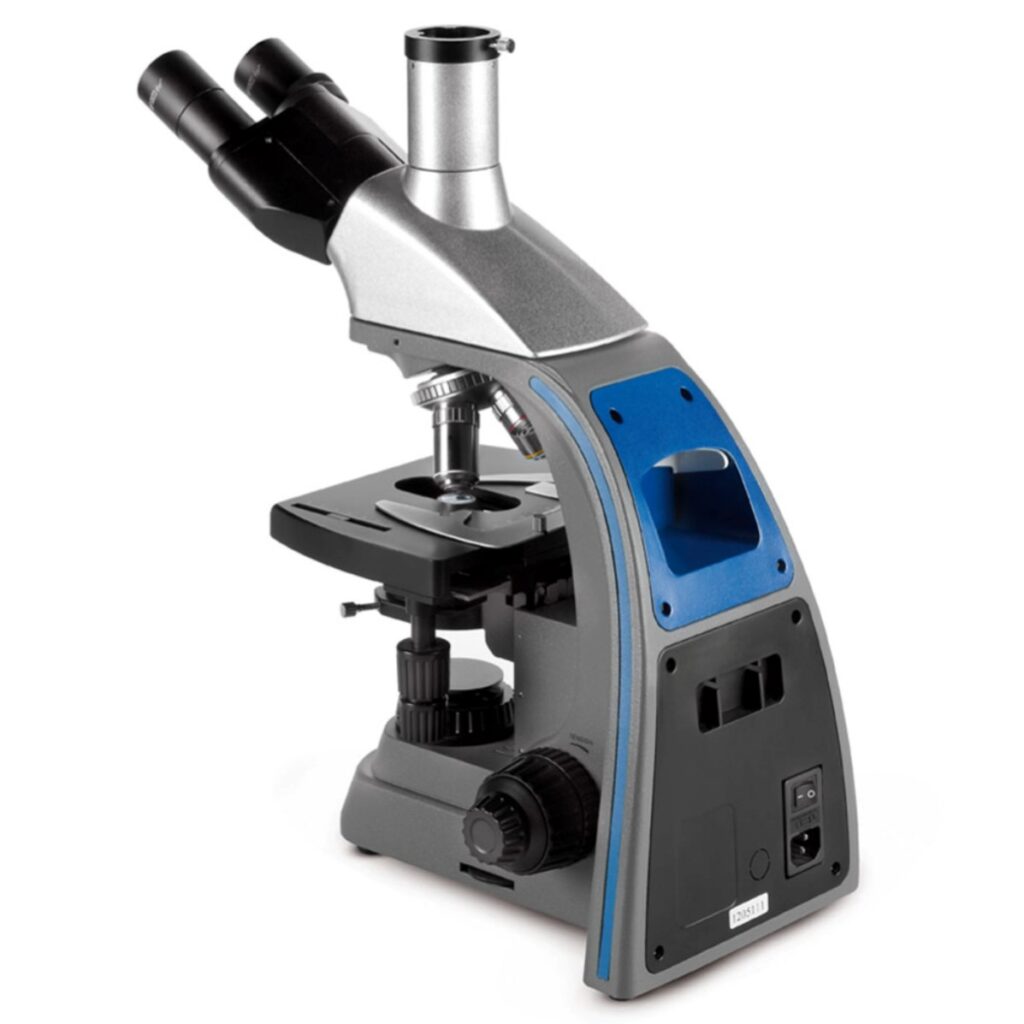

Mikroskop Biologi Binokuler/Trinokuler Type Solaris
Produk: Mikroskop Biologi Laboratorium
Merek: BEL Engineering
Tipe: Solaris Binocular/Trinocular
Negara: Italia
Seri mikroskop SOLARIS buatan BEL Enginering ini menggabungkan pengalaman dan desain dalam satu solusi. Microscope biologis ini tersusun Plan-achromatic, Koehler illuminator, eyepieces Extra Widefield, lima kali lipat nosepiece miring ke dalam, dan LED putih hangat berintensitas tinggi untuk mendapatkan warna yang sangat andal atau lampu halogen 30W untuk intensitas maksimum. Mikroskop biologis SOLARIS memiliki sistem optik infinity untuk kinerja optik terbaik. Semua fitur ini membuat Mikroskop ini cocok untuk penelitian, penggunaan laboratorium, dan operasi bidang medis.
[wptab name=’Specification’]
| Optical system | Infinity corrected optics system | ||
| Illumination | Built-in transmitted Koehler illumination with field diaphragm. 6V 30W Halogen bulb or High intensity LED (Warm white). Adjustable Intensity |
||
| Eyepieces | Extra Wide field WF10x/22mm | ||
| Objectives | PLAN ACHROMATIC 4x/0.1; 10x/0.25; 40x/0.65; 100x/1.25 (oil immersion) | ||
| Focusing | Macrometric and micrometric coaxial knobs on both sides (0,002mm). Upper limit excursion adjustment. Torque adjustment on coarse focus knob | ||
| Revolving nosepiece | Reversed quintuple nosepiece, rotating and locking at every objective. | ||
| Observation tube | Type | Binocular | Trinocular |
| Tube inclination | 30° tilted, 360° rotable | ||
| Interpupillary distance adjustment | 48-75mm, dioptric difference adjustment ± 5mm | ||
| Light path selector | 100% – 0% or 0% – 100% | ||
| Stage | 193x155mm. Excursion XY: 75x50mm (division 0,1mm). Coaxial knobs on right side. | ||
| Condenser | Abbe condenser, N.A. 1,25. Equipped with diaphragm and filter seat. Height and centering are adjustable. | ||
[/wptab][wptab name=’Accessories’]
- Phase contrast kit
- Dark field
- Micrometric slide 0.01mm
- Micrometric eyepiece 10x
- Polarization kit (analyzer+polarizer)
- 20x Plan achromatic objective
- 60x Plan achromatic objective
- Eurekam / Eurekam PRO digital cameras
- Protection cover
- Oil bottle
- User manual
[/wptab][end_wptabset]
Harga: (kontak kami)
